Frameset

• Frame

  SmartForm C1 Alloy, low step-thru, removable 750Wh downtube battery, integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection

• Fork

  SR Suntour XCR34, 100mm, coil, boost spacing, offset – 44mm (S/M) / 51mm (L/X)

• Headset

  Integrated Sealed Bearing, Tapered, internal cable routing

E-System

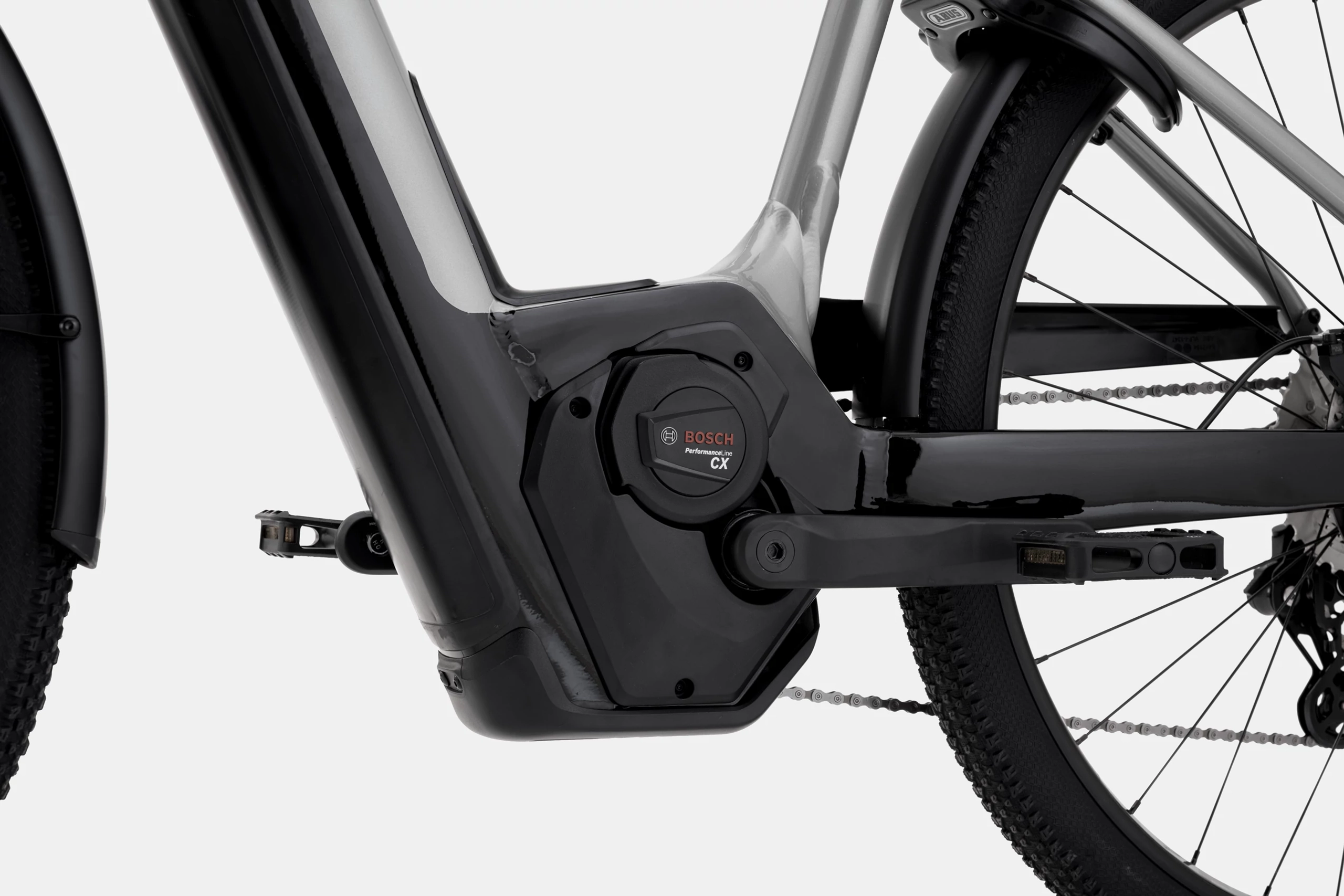

• Drive Unit

  Bosch Performance Line CX 250W

• Battery

  Bosch PowerTube, 750Wh

• Charger

  Bosch 4A

• Display

  Bosch Kiox 300 w/ LED remote

Drivetrain

• Rear Derailleur

  Shimano Deore LinkGlide Shadow RD+

• Shifters

  Shimano Deore LinkGlide, 10-speed

• Chain

  LinkGlide 10-speed

• Crank

  Bosch Gen4, 38T

• Rear Cogs

  Shimano Deore LinkGlide, 11-43, 10-speed

Brakes

• Brakes

  Magura MT C 2-piston hydraulic disc, MDR-C rotors, 203mm/203mm

• Brake Levers

  Magura MT C hydraulic disc

Wheels

• Front Hub

  Shimano MT400, 15x110mm thru-axle

• Rear Hub

  Shimano R600, 32H, QR

• Rims

  WTB STX i30 TCS, 32h, tubeless ready

• Spokes

  Stainless Steel, 14g

• Tire Size

  2.2

• Wheel Size

  27.5/29

• Tires

  Maxxis Pace 29×2.1″ 53-622 (LG/XL) / 27.5×2.1″ 53-584 (SM/MD)

• Front Tire

  Maxxis Pace, 29×2.1″ 53-584 (L/XL), 27.5×2.1″ 53-622 (S/M)

• Rear Tire

  Maxxis Pace 29×2.1″ 53-584 (L/XL), 27.5×2.1″ 53-622 (S/M)

Components

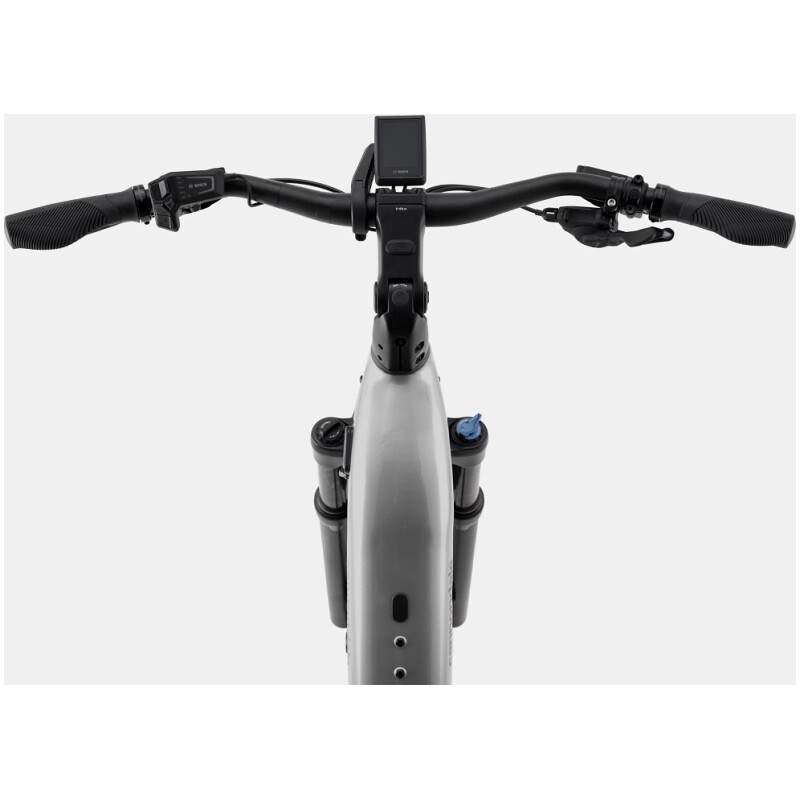

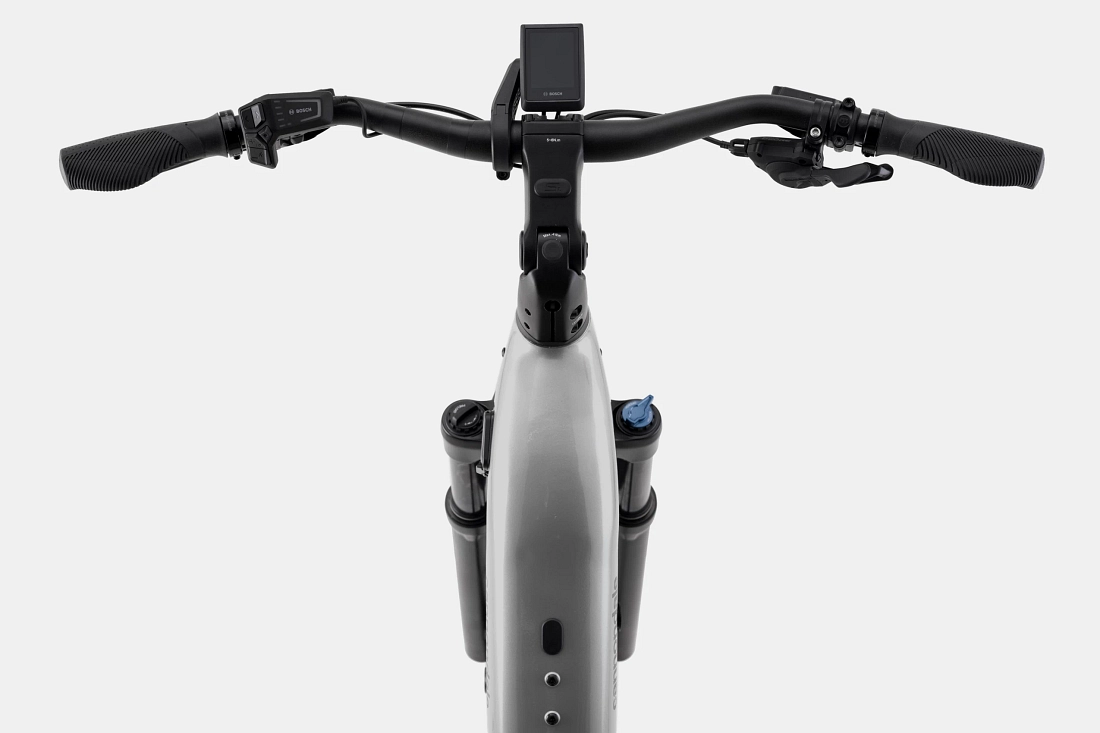

• Handlebar

  Cannondale Trekking

• Stem

  Cannondale Urban Intellimount, internal cable routing, SP-Connect compatible phone mount

• Grips

  Cannondale Ergo Fitness Dual Density, Lock-on

• Saddle

  Selle Royal Lookin

• Seatpost

  Parallelogram Suspension Seatpost, 31.6, 300mm (SM/MD), 400mm (LG/XL)

Extra

• Extra 1

  Integrated headtube running light, Cannondale Urban rear rack (25kg, Racktime SnapIt 1.0 compatible), Curana Apollo fenders, Axa Blueline 30 headlight / Blueline taillight), kickstand, Abus 4650X frame lock (key-matched with battery lock)
