Frameset

• Frame

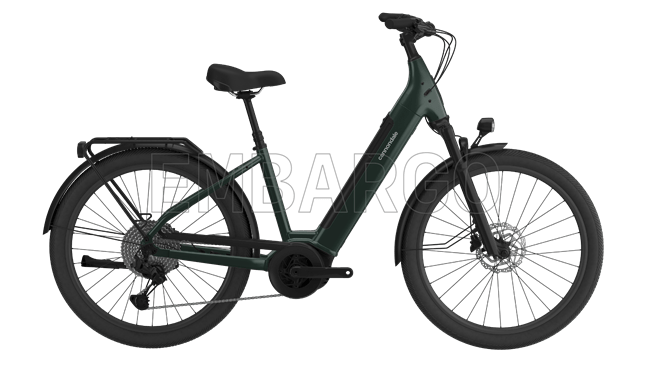

  Tesoro Low Step-Thru, SmartForm C2 Alloy, removable 625Wh downtube battery, integrated headtube reflector, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection
• Fork

  SR Suntour Mobie A32, 63mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset
• Headset

  Semi-Integrated, Tapered; 1-1/8″-1-1/2″

E-System

• Drive Unit

  Bosch Performance Line, Smart System, 25 km/h
• Battery

  Bosch PowerTube, 625Wh
• Charger

  Bosch 2A
• Display

  Bosch Purion 200

Drivetrain

• Rear Derailleur

  Shimano CUES U4000
• Shifters

  Shimano CUES U6000, trigger style, 9-speed
• Chain

  KMC e500
• Crank

  FSA Bosch E-bike
• Rear Cogs

  Shimano CUES LG300, 11-46, 9-speed

Brakes

• Brakes

  Shimano MT200 hydraulic disc, 180/180mm RT10 rotors
• Brake Levers

  Shimano MT200 hydraulic disc

Wheels

• Rims

  Alloy, double wall, 32 hole, 25mm internal width, disc-specific
• Spokes

  Stainless Steel, 14g
• Tire Size

  2.2
• Wheel Size

  27.5/29
• Hubs

  (F) Shimano TC500, 15x100mm thru-axle / (R) Shimano R600 centerlock, 32H, QR
• Tires

  Continental Race King, 27.5×2.2″ 55-584 (SM), 29×2.2″ 55-622 (MD-LG)

Components

• Handlebar

  Cannondale Urban Ergo Bar, 6061 Alloy, 25mm rise, 35° sweep, 0° rise, 680mm
• Stem

  Cannondale 3 w/ Intellimount, Alloy, 31.8mm clamp, 70mm, +6°, w/ SP Connect SPC+ Stem Mount
• Grips

  Ergon GC10
• Saddle

  Selle Royal Essenza
• Seatpost

  Cannondale 4, 6061 Alloy, 31.6, 300 (SM), 350mm (MD), 400mm (XL)

Extra

• Extra 1

  Axa Compactline 35E front light, Axa Blueline rear light, Abus framelock (key-matched with battery lock), Tubus rear rack (25kg, Racktime compatible), full-coverage fenders
