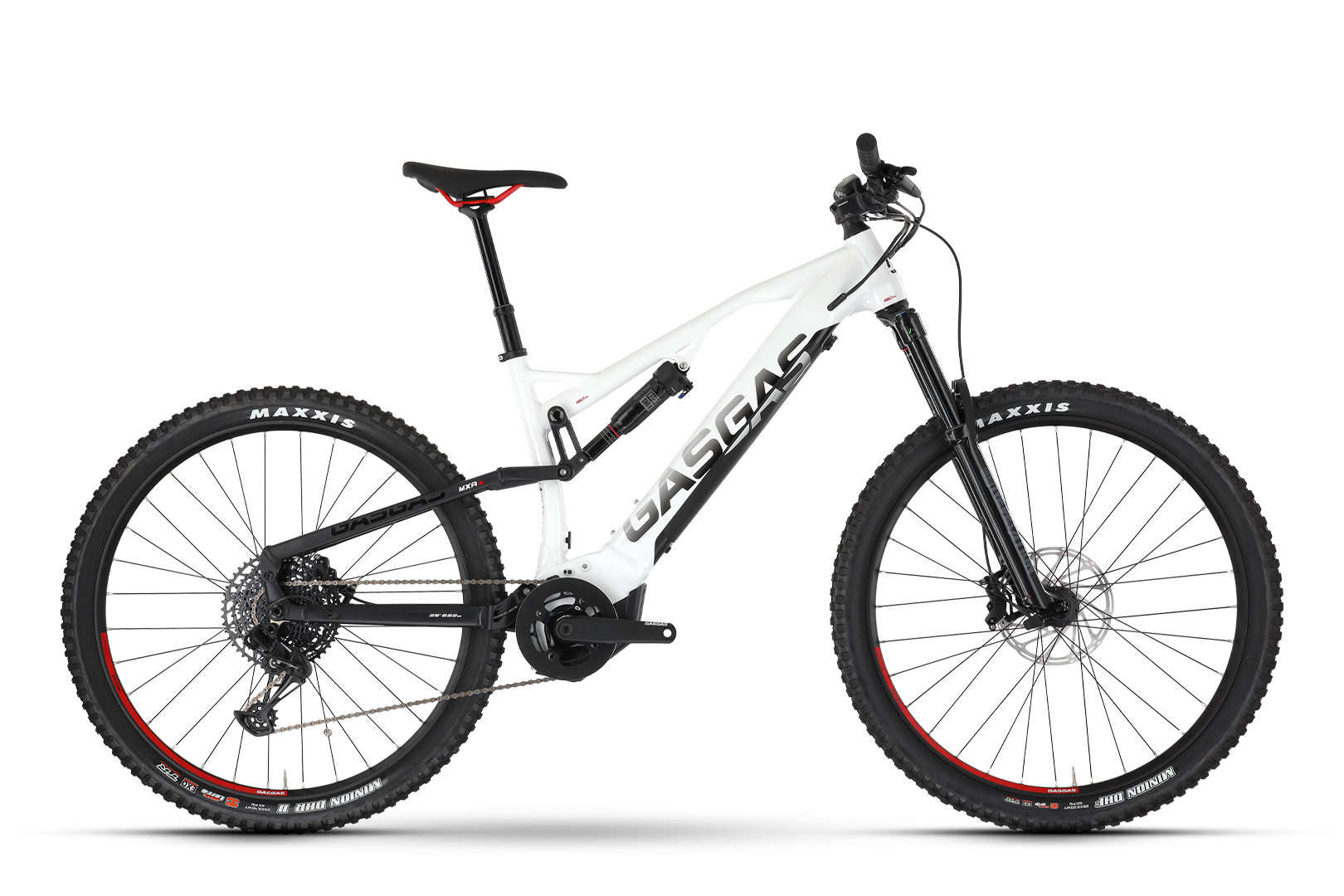

In line with our run of special edition Trail/All Mountain eMTB models, the MXA 2 features an aluminum frame with 150mm travel. The Yamaha PW-ST motor and Simplo 630Wh battery deliver great pedal-assisted performance, while Rockshox and SRAM components complete the build.

• • Frame29″, Alloy 6061, Integrated battery, Boost, 150 mm
  • ForkRockShox Revelation RC, DebonAir, Air, 150 mm, tapered
  • ShockRockShox Deluxe Select+, Air, 230×65 mm

  Brakes & Drivetrain

  • MotorYamaha PW-ST, 250 W, 70 Nm
  • BatterySimplo, 630 Wh, 36 V
  • ChargerSimplo rapid charger, 4 A
  • Mode SwitchIntegrated into display
  • DisplayYamaha Display A, LCD-Display, Micro-USB
  • Front brakeSRAM DB8, 4-piston, Hydraulic disc brake
  • Front brake rotorSRAM Centerline, 200 mm, 6-hole
  • Rear brakeSRAM DB8, 4-piston, Hydraulic disc brake
  • Rear brake rotorSRAM Centerline, 180 mm, 6-hole
  • Rear derailleurSRAM SX Eagle, 12-S
  • CassetteSRAM PG-1210, 11-50 T
  • ChainSRAM SX Eagle
  • ChainringSRAM X-Sync Eagle, 38 T
  • Crank armGASGAS EC40, Aluminum forged, JIS
  • Shift leverSRAM SX Eagle, Single Click

  Wheels

  • Front wheelRim: Ryde Disc30, With eyelets, Tubeless ready / Hub: GASGAS DA210F, 6-hole, 15×110 mm, thru axle
  • Rear wheelRim: Ryde Disc30, With eyelets, Tubeless ready / Hub: GASGAS DA210R, 6-hole, 12×148 mm, thru axle
  • TirePirelli Scorpion Enduro S, 60-622, 29 x 2.4, Tubeless ready
  • Rear tirePirelli Scorpion Enduro R, 29 x 2.4, Tubeless ready

  Cockpit

  • StemGASGAS 31,8, 0 °, Ahead
  • HeadsetGASGAS ZS44/ZS56
  • HandlebarGASGAS Riser 31.8 mm, 780 mm, Sweep: 9 °, Rise: 12 mm
  • GripsGASGAS MTB, Lock-on grips
  • SaddleGASGAS MTB
  • Seat postGASGAS, 31.6 mm, Dropper post
