Beskrivning
Frame

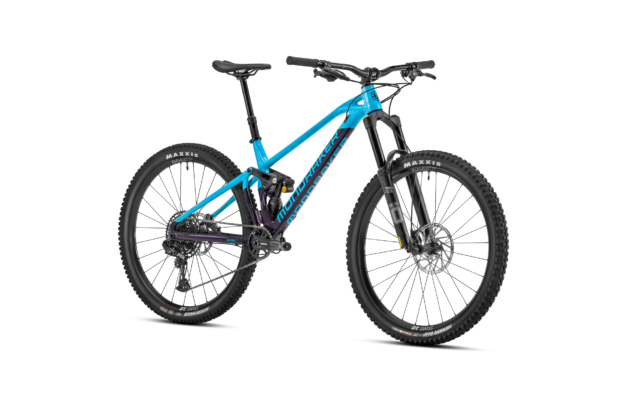

Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
Sizes
S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Rear shock
Öhlins TTX Air 205×62.5mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
Shock settings
C20 compression, R35 rebound
Fork
Öhlins RXF 36 M.2 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber. Fork settings: C20 R40
Headset
ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem
ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
ONOFF Twin, 1lock-on, 135mm
Seatpost
ONOFF Pija dropper internal, diameter 31.6mm, S size: 405×95-125mm, M size 458×120-150mm, L size: 498×140-170mm, XL size: 498×140-170mm
Saddle
SDG BEL-AIR 3.0, LPU foam, steel rails
Front brake
Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever
Sram G2 R, SwingLink, tool-free reach adjust
Rims
e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Spokes
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear hub
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, Shimano freehub
Front tire
Maxxis Minion DHF 29×2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire
Maxxis Aggressor 29×2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Crankset
Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S/M size: 170mm, L/XL size: 175mm
Rings
32T, CNC-machined alloy, X-SYNC 2
Bottom bracket
Sram DUB BSA, sealed bearings, 73mm
Chain
Sram SX Eagle, 12s, Powerlock
Rear derrailleur
Sram NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers
Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Casette
Sram XG-1230, 11-50T, 12s
Derailleur hanger
Mondraker M068
Weight
15,7 kg

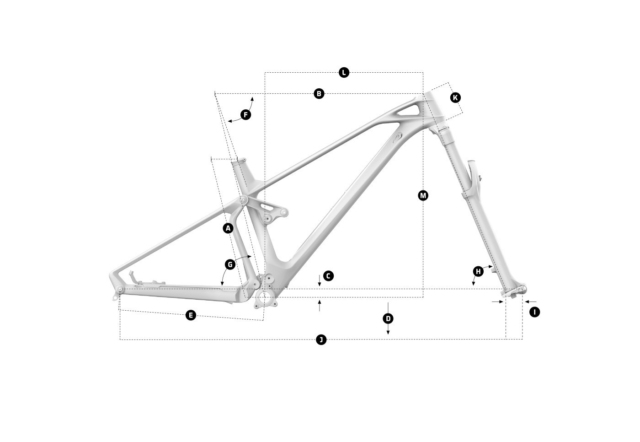

| FRAME SIZE | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Seattube length | 380 mm | 420 mm | 470 mm | 510 mm |
| B | Toptube length | 606mm | 629mm | 654 mm | 676 mm |
| C | Bottom bracket drop | -21 mm | -21 mm | -21 mm | -21 mm |
| D | Bottom bracket height | 355 mm | 355 mm | 355 mm | 355 mm |
| E | Chainstay length | 435 mm | 435 mm | 435 mm | 435 mm |
| F | Seat tube angle | 71° | 71° | 71° | 71° |
| G | Effective seattube angle | 76° | 76° | 76° | 76° |
| H | Headtube angle | 66° | 66° | 66° | 66° |
| I | Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| J | Wheelbase | 1193 mm | 1222 mm | 1248 mm | 1274mm |
| K | Headtube length | 90 mm | 100 mm | 115 mm | 130 mm |
| L | Reach | 450 mm | 475mm | 495 mm | 515 mm |
| M | Stack | 606 mm | 615mm | 630 mm | 643 mm |
