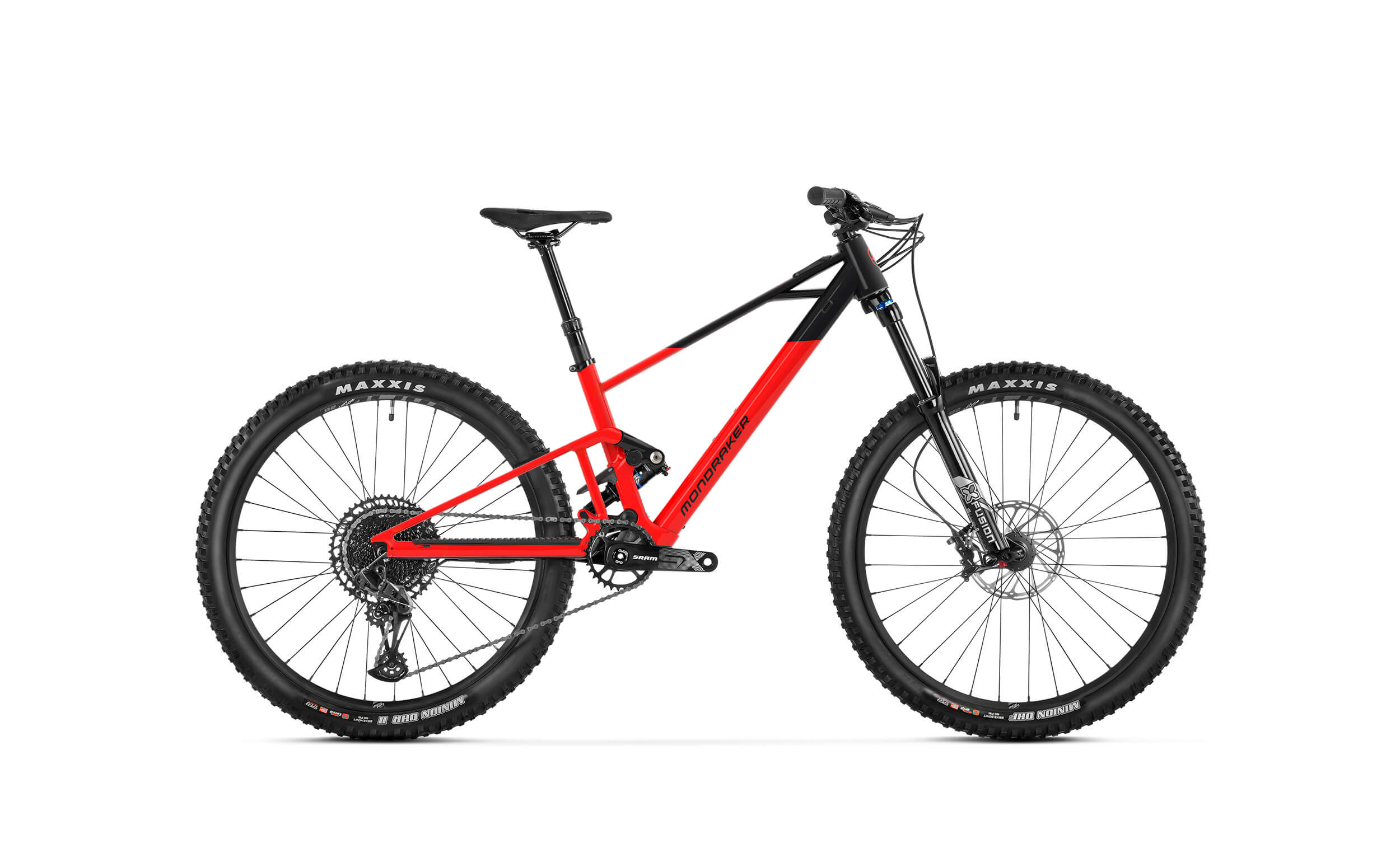

Mondraker F-PLAY 26 Chili Red

Name: Mondraker F-PLAY 26 Chili Red
Brand: Mondraker
SKU: 010.242-1
Availability: InStock

40.999.00 kr

Mondraker F play 26 är en snygg och smidig cykel som ditt barn kommer att ha mycket roligt med. Med hjälp av el kommer även backarna att upplevas som lätta hinder att ta sig...

Artikelnr: 010.242-1 Artikelnr: 010.242-1 Kategorier: Barncyklar / Juniorcyklar, Barncyklar 26 tum, Cyklar, E-MTB, Elcyklar, Mondraker Brand: Mondraker

Beskrivning

Frame

F-Play 26 6061 Alloy Stealth evo, hydroformed tubing, Zero Suspension System, 130mm travel, one piece bolt-on upper link, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, 1x drivetrain compatible

Sizes

One size: 350mm
Rear shock

X-Fusion 02PRO R, 165x45mm. Settings: low-speed rebound, air preload. Trunnion top, 50x8mm bottom bushings

Shock settings

A-Tune light compression
Fork

X-Fusion Slant RC 26, 140mm, air spring, tapered steerer tube, 15x100mm axle, 34mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload

Headset

Onoff ZS44/ZS56, 1-1/8″, 1.5″ head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º
Stem

Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar

MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips

Onoff Beehive, 1lock-on, 135mm

Seatpost

X-Fusion Manic LC internal, diameter 31.6mm, 1X Remote lever, 125mm
Saddle

SDG Fly JR

Front brake

Shimano MT520, 4-piston caliper, RT56 180mm IS 6 bolts rotor, resin pads
Rear brake

Shimano MT520, 4-piston caliper, RT56 180mm IS 6 bolts rotor, resin pads

Brake lever

Shimano MT501, servo wave, alloy lever
Rims

MDK-HP1 26 TLR, 25mm internal width, tubeless ready, 32 spokes

Spokes

CN round stainless steel
Front hub

DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts

Rear hub

Mahle-Ebikemotion X-30, HG freehub
Front tire

Maxxis Minion DHF 26×2.5, Tubeless ready, 3C MAXX TERRA, EXO Protection, 60TPI, folding bead

Rear tire

Maxxis Minion DHR II 26×2.4, Tubeless ready, EXO Protection, 60TPI, folding bead
Crankset

Prowheel DMJ-CR094S-TT, Direct mount chainring, 155mm

Rings

30T, steel
Bottom bracket

Prowheel PW-MBB73 73mm

Pedals

SDG Slater JR
Chain

Shimano Deore M6100, 12s, Quick-link

Rear derrailleur

Shimano Deore M6100, SGS, Shadow+, 12s
Shift levers

Shimano Deore M6100, Rapid Fire Plus, 12s

Casette

Sunrace CSMZ600, 11-51T
Derailleur hanger

Mondraker M077

Weight

17,8 kg
Display

iWoc ONE Head Unit

Motor

Mahle X-30, Drive Unit
Battery

Mahle IX250Wh
